| Material: | Stainless Steel | Suitable For: | Cucumber, Carrot, Etc |
|---|---|---|---|
| Capacity: | 3t/h | Grading Size: | 4 |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

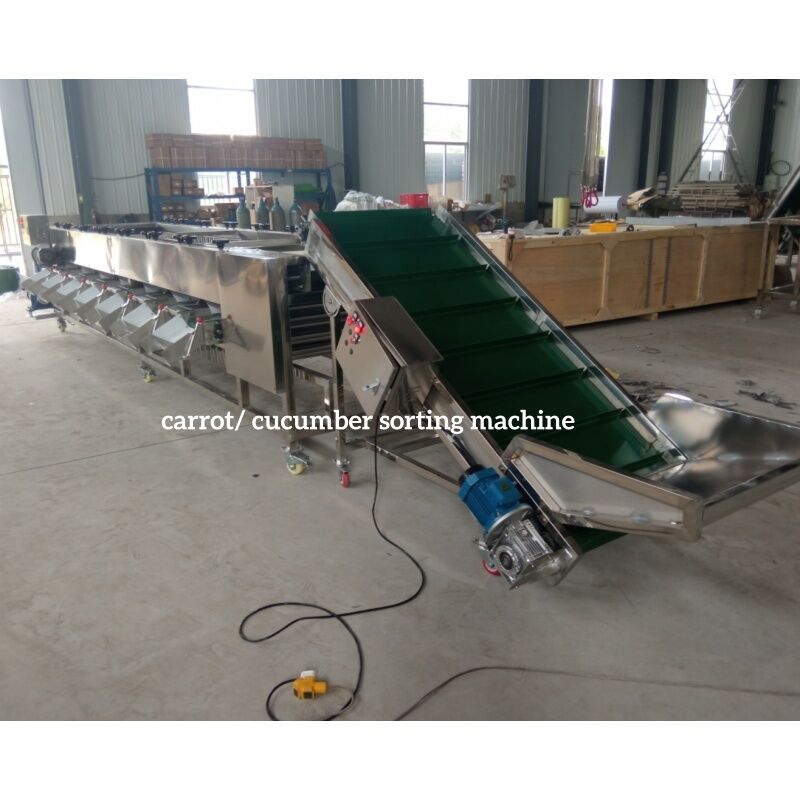

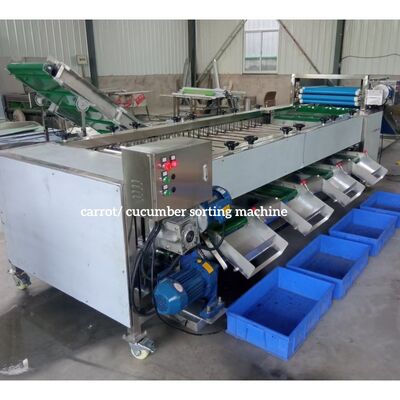

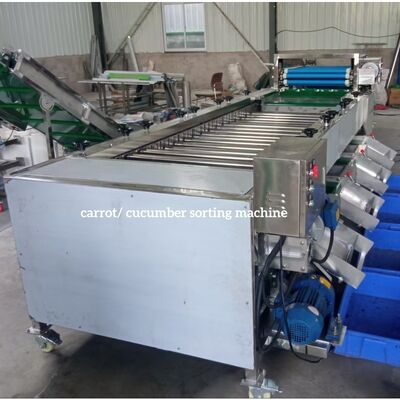

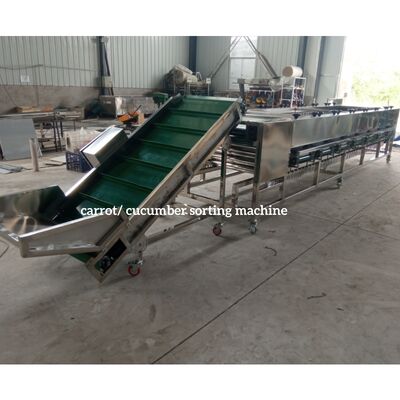

Carrot Sorting Machine, Carrot Grading Machine, Carrot Grader sorter
The cucumber sorting machine contains elevator and grading two machines. Pour the cucumber into the elevator hopper, will delivery the cucumber into sorting machine, after sorting, the cucumber fall onto the conveyor belt and are transported out.
Material use stainless steel 201. Sorting size 25-100mm adjust.
Technical parameter:
| Machine |
Specification
|
|
Belt elevator
|
Dimension : 2.5*1*1.3m Belt width : 0.8m Weight : 150kg Power :0.75kw Voltage : 220/380v,50hz Material : SUS201
|
|
Cucumber sorting machine ( 4 sizes )
|
Dimension:3.6*1.85*1.15m Roller width :0.96m Power :2.2kw Voltage : 220/380v,50hz Weight:600kg Grades :4 sizes Material : SUS201
|
