Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Hole Cutting: | Laser Cutting |
|---|---|---|---|
| Suitable For: | Onions, Tomatoes, Garlic, Apples, Etc | Grades: | 3 Belts, 4 Grades |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

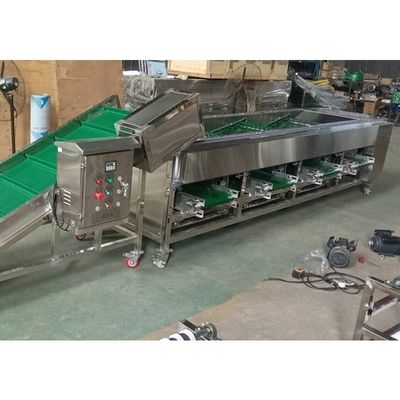

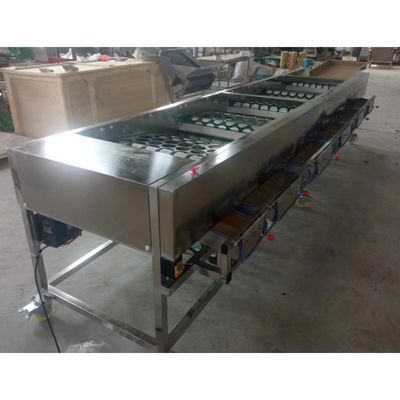

Onion Sorting Machine, Onion Grading Machine
The hole belt type grading machine mainly made by grading hole belt, chains, discharge slope, machine racks, control box, etc. Belt is use food grade PVC, hole sides smooth, no harm to fruits. Machine frame is use stainless steel, grading speed can be adjusted. suitable for apple, citrus, peach, tomatoes, garlic, citrus, orange, etc. Material use stainless steel 201.
Specification:
| Model | FSTX-4 (onion ) |
| Dimension | 3500*1300*950mm |
| Grades | 3 belts, 4 grades |
| Power | 220/380v,50hz,1.1kw |
| Weight | 500kg |
| Capacity | 3t/h |
| Speed | Adjust |

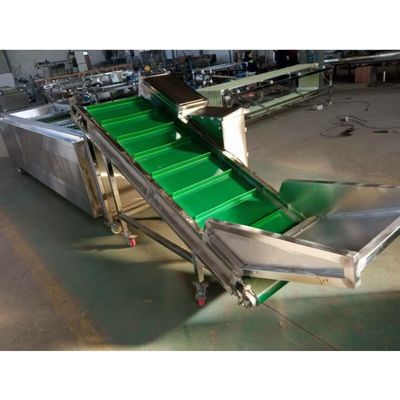

Suggest add one elevator :
The elevator mainly used to delivery the fruits to grading machine, save labor and time.
Specification:
| Model | FSE-600 |
| Dimension | 2500*900*1300mm |
| Belt width | 600mm |
| Power | 220/380v,50hz,0.75kw |
| Weight | 150kg |
Note : The machine is laser cutting and has a jumping mechanism, which makes the grading more accurate.
