Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Elevator: | 0.75kw, 380v, 50hz |
|---|---|---|---|
| Washing Machine+fan Drying Machine: | Transmission 1.5kw+ Fan 3.3kw | Grading Machine: | 2.2kw, 380v,50hz |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |
Potato washing,fan drying, grading processing line 4t/h
Process flow:
Potato elevator--- washing--- fan drying --- grading
This production line is suitable for potatoes grown in clay land, use water to wash, then fan drying, finally grading.
Technical parameter:
| Machine | Specification |
|
Potato elevator
|
Roller elevator Dimension : 3*1.3*1.2m Power : 0.75kw, 380v, 50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 304 ; Roller width: 800mm; Purpose: Used for material conveying and upgrading to the next step.
|
|
Washing machine+fan drying machine
|
Washing machine and fan drying machine Dimension : 4*1*1.5m Power : transmission 1.5kw+ fan 3.3kw, 380v,50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 304 ; Cleaning: water pump circulating water spray, 5 rows of spray nozzles Brushing roller cleaning: quantity 30pcs, brush roller width 0.8 meters; Fan drying: Equipped with 6 large axial flow fans.
|
|

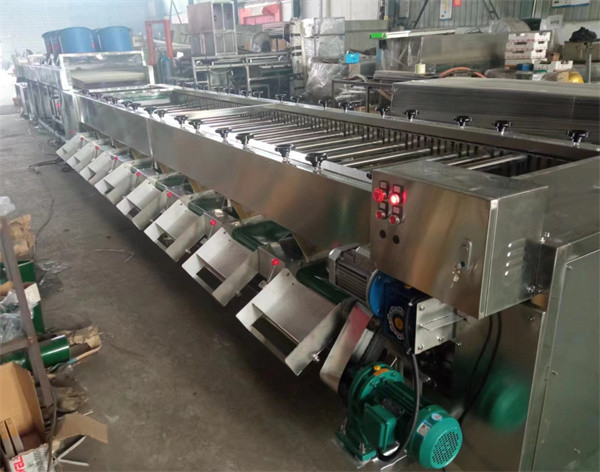

Potato grading machine
|
Potato grading machine into 4 grades Dimension:4*1.85*1.15m Power:2.2kw, 380v,50hz Material: stainless steel 201 ; roller effective width :980mm; Grading specifications: 40-100mm user-adjustable; Grading: 4 grades
|
potato elevator

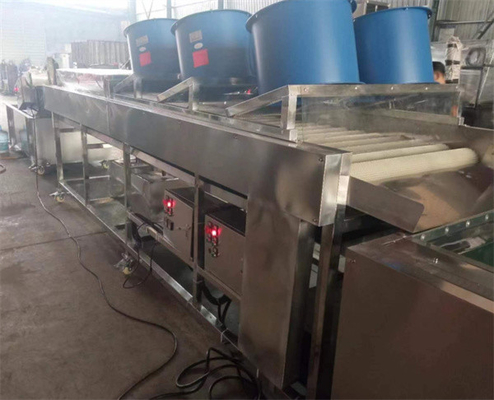

Washing machine+fan drying machine
