potato cleaning grading machine, potato cleaning sorting machine

China potato cleaning grading machine, potato cleaning sorting machine supplier
potato cleaning grading machine, potato cleaning sorting machine supplier potato cleaning grading machine, potato cleaning sorting machine supplier potato cleaning grading machine, potato cleaning sorting machine supplier

Large Image :  potato cleaning grading machine, potato cleaning sorting machine

Product Details:

Place of Origin: china
Brand Name: AFS
Certification: CE
Model Number: 4t/h

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $5000/pc
Packaging Details: export wooden case
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/m
Detailed Product Description
Material: Stainless Steel Elevator: 0.75kw, 380v, 50hz
Brush Cleaning Machine: 1.5kw, 380v,50hz Sorting Machine: 1.5kw, 380v,50hz
Shipping: EXW,FOB,CNF,CIF Warranty: One Year

                            Potato brush cleaning, grading processing line 4t/h



Process flow:

Potato elevator--- brush cleaning --- grading

This production line is suitable for potatoes grown on sandy land, not use water, but brushes to clean.

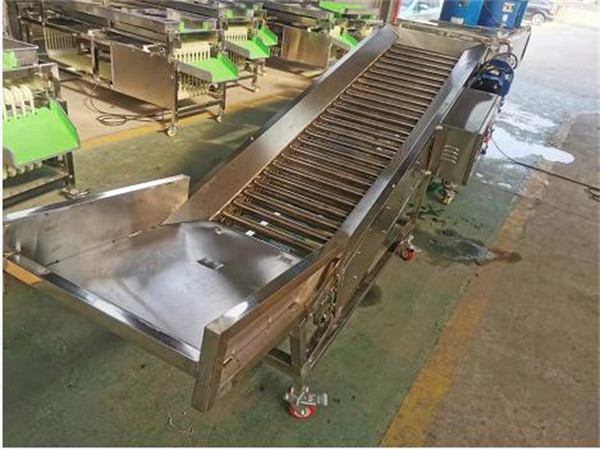

potato elevator

potato cleaning grading machine, potato cleaning sorting machine

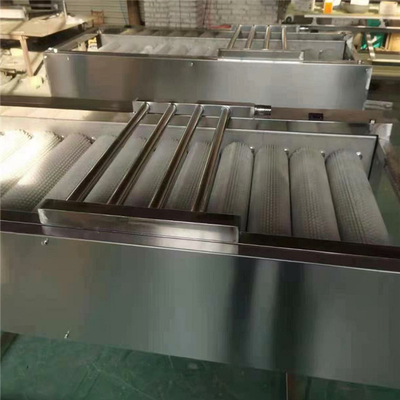

brush cleaning machine: brushes soft, no harm to potato

potato cleaning grading machine, potato cleaning sorting machine

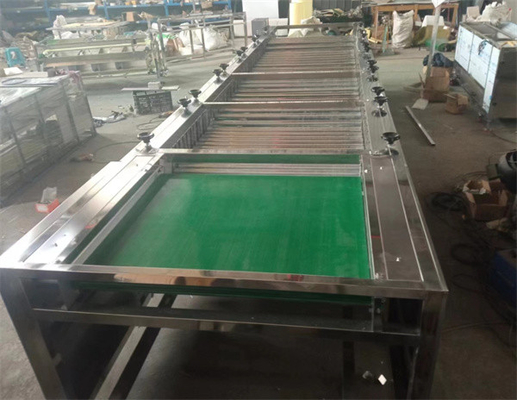

potato sorting machine : can grading into 4 grades, 5 grades, 6 grades, etc according to customer needs.

potato cleaning grading machine, potato cleaning sorting machine



Technical parameter:

Machine Specification

Potato elevator



Roller elevator

Dimension : 3*1.3*1.2m

Power : 0.75kw, 380v, 50hz

Motor: RV series variable frequency reduction motor;

Frame material: stainless steel 201 ;

Roller width: 800mm

Purpose: Used for material conveying and upgrading to the next step



Brush cleaning machine

Brush cleaning machine

Dimension : 3*1*1.5m

Power : transmission 1.5kw, 380v,50hz

Motor: RV series variable frequency reduction motor;

Frame material: stainless steel 201 ;

Brushes: 22pcs, brush roller width 0.8 meters;

Equipped with a soil conveyor below.



Potato grading machine



Potato grading machine into 4 grades

Dimension:4*1.85*1.15m

Power:2.2kw, 380v,50hz

Material: stainless stee2.2kw, 380v,50hzl 201 ;

roller effective width :980mm;

Grading specifications: 40-100mm user-adjustable;

Grading: 4 grades
