| Material: | Stainless Steel | Inner Grinding: | Stator And Rotor |
|---|---|---|---|
| Suitable For: | Peanut, Sesame, Almond, Cashew Nut, Chilli, Etc | Cooling Method: | Water |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

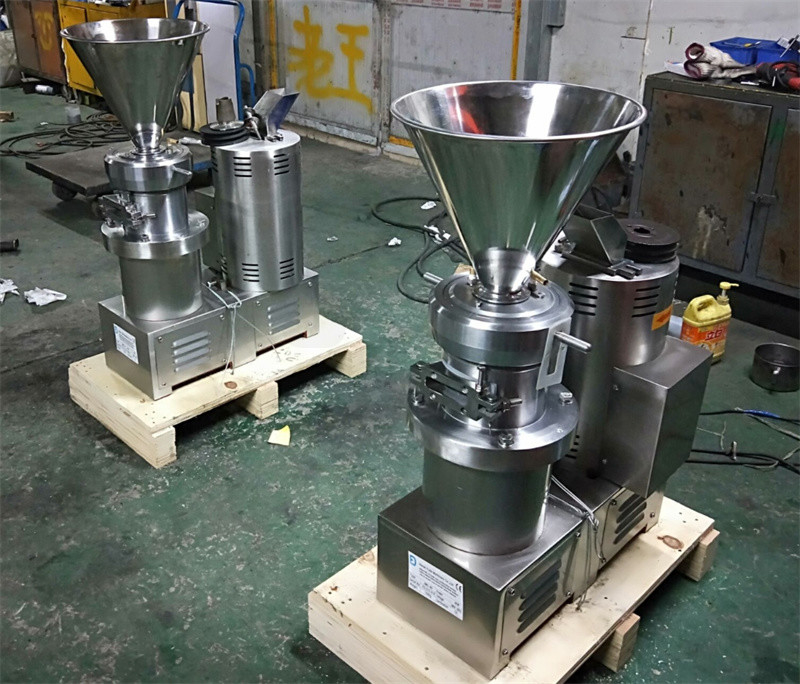

peanut butter machine, peanut paste grinding machine, colloid mill

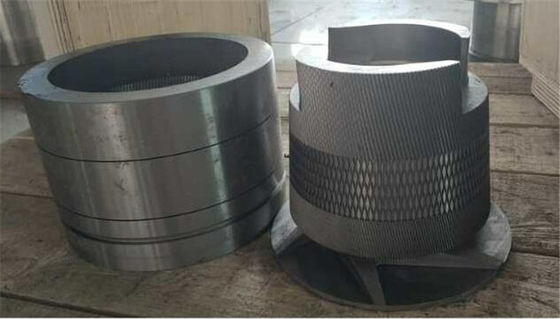

The machine use stator and rotor rotating in high speed, through cutting, grinding, high frequency vibration reach shredding. The shredding chamber has three shredding area, first is coarse grinding, second is fine grinding, third is ultrafine grinding. Through adjusting the gap of stator and rotor , you can get 100-200m paste. The machine with compact structure, running balance, low noise, corrosion resistance, easy maintain etc features, is an ideal equipment for grinding.
Feature:
1. Our machine use Germany advance heat treatment process, hardness reach 70HRC, more wear resistance, corrosion resistance, and not rust.
2. with high capacity, you can put whole peanut kernels into the machine.
Specification :
| Model | JMS-50 | JMS-80 | JMS-110 | JMS-130 | JMS-180 |
| Mesh(m) | 50-100 | 50-100 | 100-200 | 100-200 | 100-200 |
| Capacity (kg/h) | 10-15kg/h | 70-100kg/h | 150-200kg/h |
200-400kg/h
|
600-1000kg/h |
| Power (kw) | 1.5kw,220v | 4kw,380V | 7.5kw,380v | 11kw,380v | 18.5/22kw,380v |
| Weight (kg) | 50kg | 150kg | 175kg | 285kg | 340kg |
| Dimension (mm) | 530*260*580 | 640*410*900 | 700*430*980 | 830*440*1100 | 830*490*1100 |
