| Suitable For: | Peanut Butter, Sesame Paste, Chili Paste,soybean ,almond Milk,tomato ,etc. | Capacity: | 10-1000kg/h |
|---|---|---|---|
| Fineness: | 2-50μm | Shipping: | EXW,FOB,CNF,CIF |
| Warranty: | One Year | Material: | Stainless Steel |

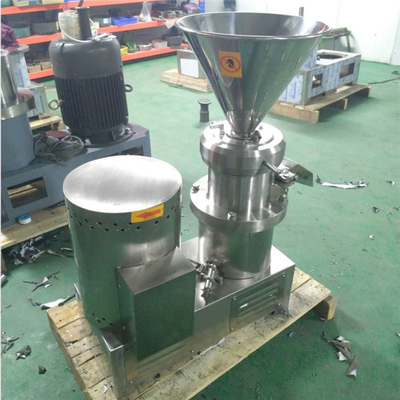

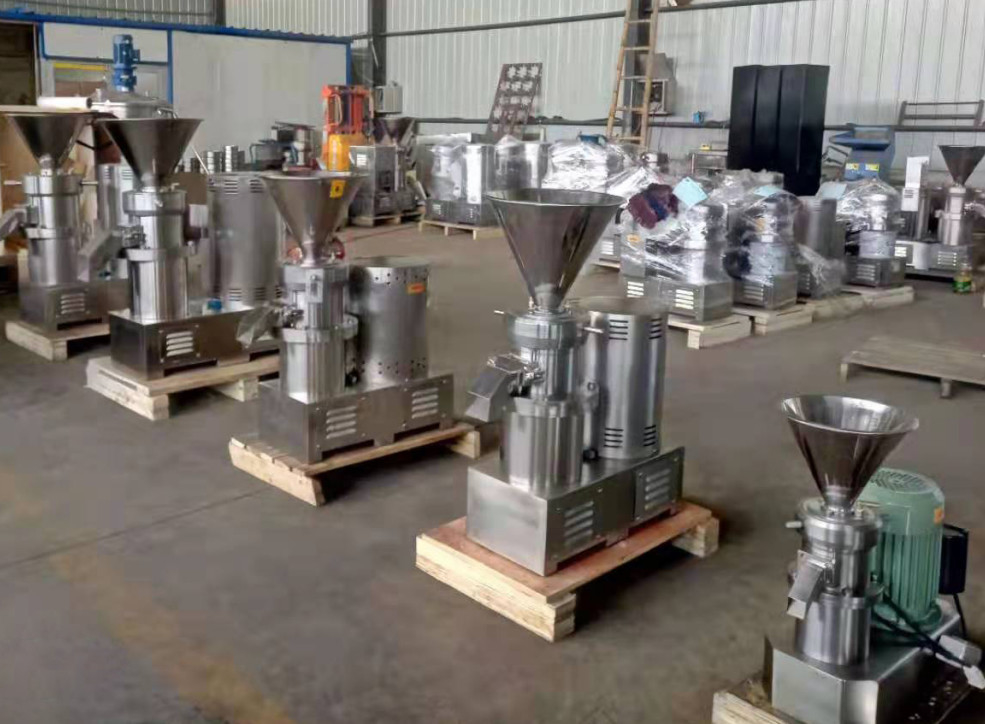

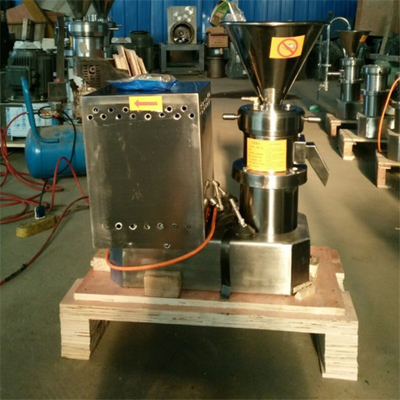

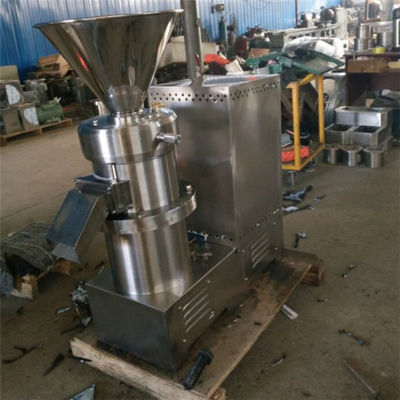

peanut butter making machine,sesame paste making machine,colloid mill machine,meat grinding machine
The machine use stator and rotor rotating in high speed, through cutting, grinding, high frequency vibration
reach shredding. The shredding chamber has three shredding area, first is coarse grinding, second is fine
grinding, third is ultrafine grinding. Through adjusting the gap of stator and rotor , you can get 100-200m paste.
The machine with compact structure, running balance, low noise, corrosion resistance, easy maintain etc features,
is an ideal equipment for grinding.
Specification :
| Model | JMS-50 | JMS-80 | JMS-110 | JMS-130 | JMS-160 | JMS-180 |
| Fineness (μm) | 2-50μm, capacity bigger, then more fine | |||||
| Capacity (kg/h) | 10-15kg/h | 70-100kg/h | 150-200kg/h |
200-400kg/h
|
400-600kg/h | 600-1000kg/h |
| Power (kw) | 1.5kw,220v | 4kw,380V | 7.5kw,380v | 11kw,380v | 15kw,380v | 18.5/22kw,380v |
| Weight (kg) | 50kg | 150kg | 175kg | 285kg | 300kg | 375kg |
| Dimension (mm) | 530*260*580 | 640*410*930 | 700*430*100 | 990*440*1000 | 1000*460*1050 | 1000*490*1100 |
