| Material: | Carbon Steel | Suitable For: | Pistachio, Pine Nut |
|---|---|---|---|
| Shelling Rate: | 95% | Kernel Shell Separate: | Fan |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

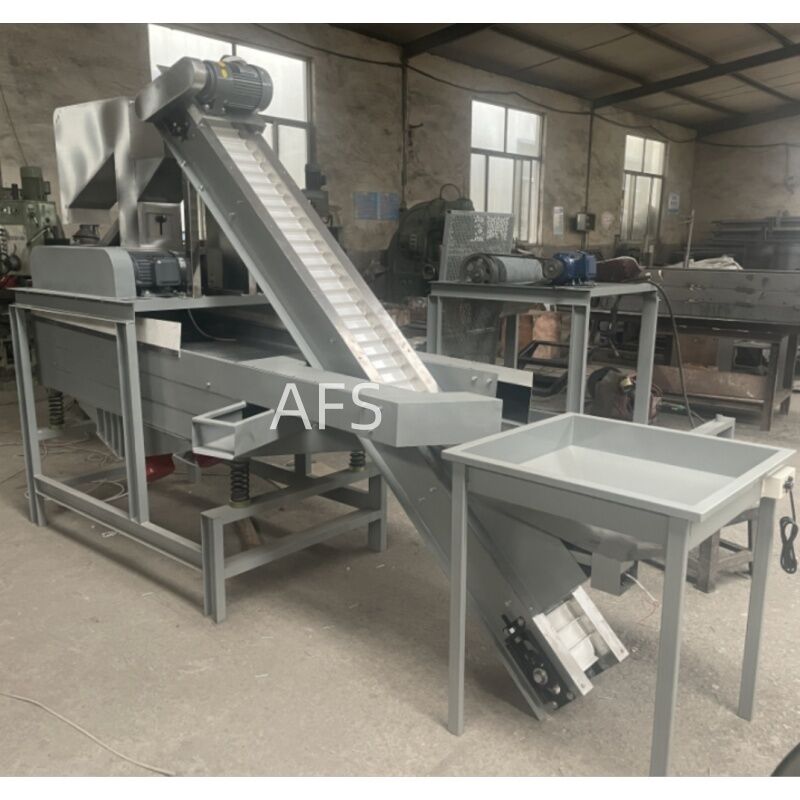

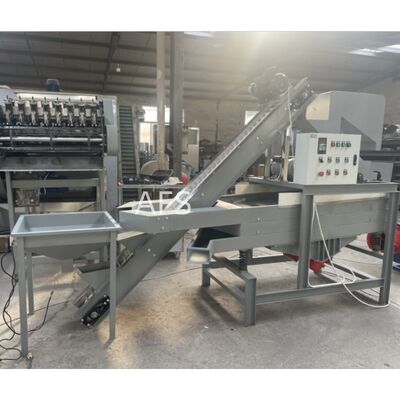

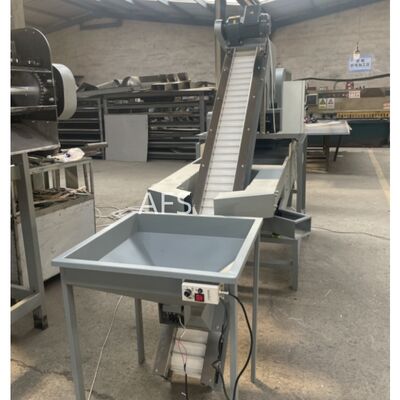

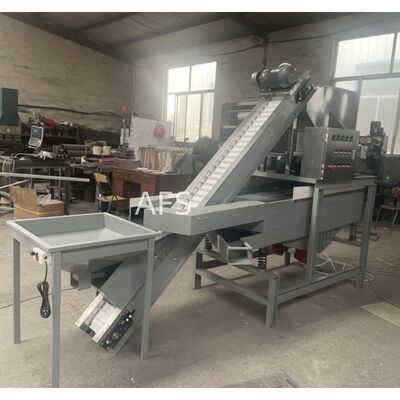

Pistachio Shelling Machine, Pistachio Hulling Machine, Pistachio Cracking Machine
![]()
The pistachio shelling machine designed for removing the outer shells of pistachios and pine nuts, high rate of kernels and high separation rate.
Working Principle:
1. Better grading the pistachios first, to get same size pistchios, then pour into shelling machine.
2. After shelling , we can get shell, pistachio kernel, broken shells, and unshelled pistachio.
3. Shells, broken shells come out from the bottom discharge outlet.
4. Pistachio kernels come out from the second-layer discharge outlet.
5. Unsehlled pistachio will back to shelling machine, cracking the shell again.
Specification:
| Equipment name | Specification |
| Pistachio grading screen |
Dimension : 2000*600*1100mm Power : 0.4kw Voltage : 380v,50hz Grading : 3 sizes
|
| Pistachio shelling machine |
Dimension : 3200*1000*1900mm Power: 2.6kw Voltage : 380v,50hz Capacity : 120kg/h Shelling rate : 95% Broken rate : 8% Weight:260kg
|
| Kernel shell separating machine |
Dimension : 900*900*1600mm Power : 1.1kw Voltage : 380v,50hz Kernel shell separating rate: 90-95%
|
![]()
