Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 201 | Air Compressor: | Match 22kw |
|---|---|---|---|
| Capacity: | 200-300kg/h | Garlic: | Need Dry, Not Suitable For Fresh Garlic Peel Skin |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

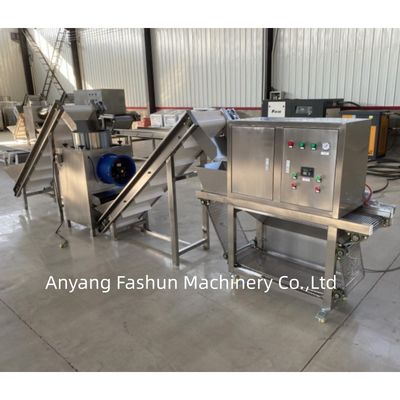

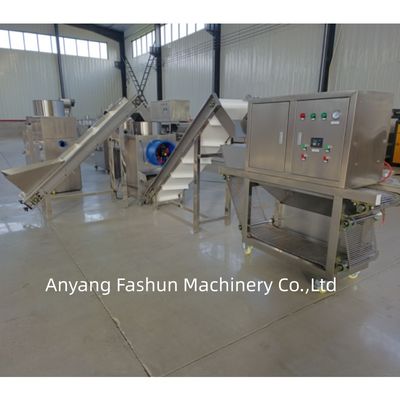

Small Garlic Peeling Line 200-300kg/H, Garlic Skin Peeling Machine, Garlic Processing Machines
Garlic peeling process :
garlic elevator---garlic bulb into cloves machine---garlic elevator---garlic peeling machine---garlic picking conveyor
The garlic peeling machine connect with air compressor, to remove the garlic skin, no damage to garlic, high quality. Material use Stainless steel 201.
The peeling machine suitable for dry garlics.
Specification:
| Machine name | Specification |
|
Garlic elevator
|
Voltage:380v,50hz Power:0.55kw Dimension:2000*500*1550mm Weight:180kg Speed : fixed
|
|
Garlic bulb into cloves machine
|
Voltage: 380v,50hz Power:1.87kw Dimension:1260*600*1180mm Weight :138kg
|
|
Garlic elevator
|
Voltage:380v,50hz Power:0.55kw Dimension:2000*500*1550mm Weight:180kg Speed : fixed
|
|
Garlic peeling machine
|
Capacity:200-300kg/h Input voltage:380v,50hz Total power:1.1kw Air compressor :22kw screw air compressor air pressure:8kg/cm3 Dimension :1500*630*1370mm Weight :240kg
|
|
Air compressor
|
22kw,match with garlic peeling machine Dimension : 1100*800*1300mm Weight :300kg Air storage tank : 2070*830*920mm Weight :180kg |
|
Garlic picking conveyor
|
The picking conveyor mainly used to pick up garlics that didn’t peeled, then can put into peeling machine and peel again.
Voltage:220v,50hz Power:90w Dimension:3000*585*600mm Weight:90kg |
