Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel | Capacity: | 3t/h |
---|---|---|---|
Suitable For: | Garlic Bulb, Tomato, Apple, Etc Round | Grades: | 4 Grades |
Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |

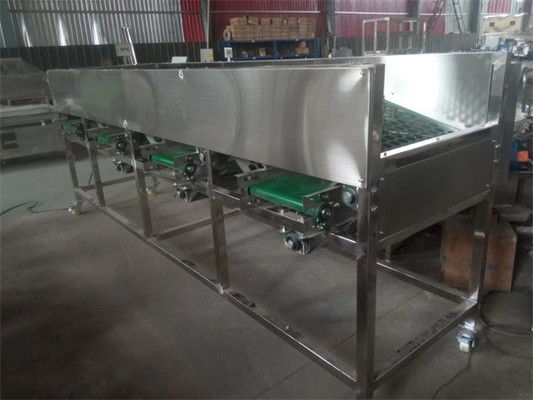

garlic sorting machine, garlic grading machine,garlic sorter, garlic classifier
Technical :
1. Customized grading size, laser drilling according to customer needs, with high drilling accuracy.
2. There is a discharging belt under each hole belt, speed can be adjusted.
3. Design output: 3-5 tons/hour, and the speed adjustment method is variable frequency.
4. There is a rotating brush at the front of the sorting system. When garlic is stuck in the belt hole, the rotating brush will sweep it out to solve the problem of garlic plugging in the hole.
5. The end of the discharge belt designed with a bagging device, garlic can be bagged directly after graded.
6. Machine with wheels for easy movement.
7. Machine material use stainless steel 201.
Specification:
Model | FS-BG |
Dimension | 3900*1450*1500mm |
Grades | 4 grades |
Belt width | 800mm |
Belt thickness | 3mm PVC |
Power | 380v,50hz,2.2kw |
Weight | 400kg |
Capacity | 3-5t/h |
Speed | Adjust |

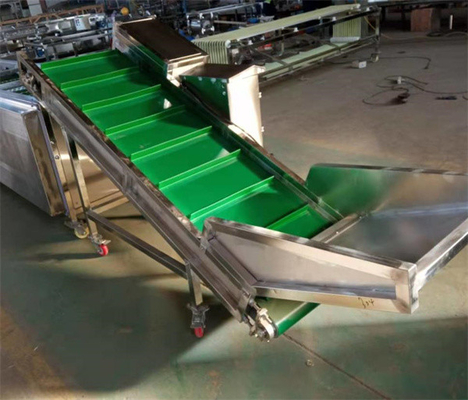

Garlic elevator
The elevator is used for delivery garlic to grading machine.
Specification:
Model | FS-TS |
Dimension | 2500*1000*1300mm |
Belt width | 600mm |
Weight | 150kg |
Power | 0.75kw |
Voltage | 380v,50hz |
