apple cleaning and grading machine, fruit cleaning grading machine, weight sizer

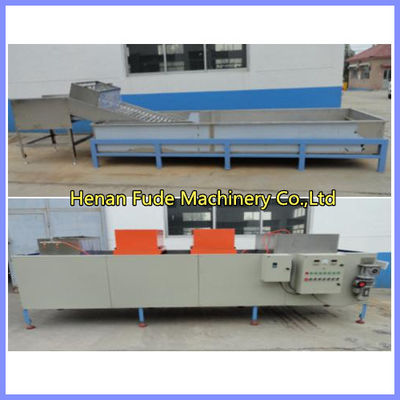

Fruit Cleaning and Grading Production Line

Introduction of each part

A Cleaning machine and upgrade platform portion

a. Power:2.25kw,380v,50Hz,Stepless speed reducer

b. Structure:stainless steel water tank,select and upgrade platform, high pressure water pump,and spray head.

c. Installed with stainless steel water tank with filter for recycling water. High-pressure water pump is used to wash the fruits, like surf bath, to make sure the fruit is clean and orderly upgrade. (water tank size:4500×1340×770mm)

d. After cleaning in the stainless steel water tank, the fruits will be elevated to the straight selection platform, the plastic roller move forward while rotate, which will make it easier for the inferior fruits to be selected out. While taking advantage of the spray-head spray the fruit surface, to remove residues (fruit elevator:3000×1100×1420mm)

e. Supplied standing shelf

B washing portion

a. Power:0.75kw,380v,50Hz,Stepless speed reducer

b. Size:4500×1300×1510mm

c. Structure:brush roller, spray-head,,filter,air blower.

d. The use of rotation brush rollers and secondary spray rinse the fruit surface,spray at the sixth brush roller to eliminate attachment

e. During the conveying process, the brushes will clean out the water on the fruit, and they are also used to brighten the fruit. Four cooling fans are installed in the middle of the brushes for drying the fruits

D Automatic loader for grading machine

a. Power:0.55kw,380v,50Hz,frequency control

b. Size:2600×1450×1250mm

c. Use conveyor belt and rubber-tired to load fruit to the fruit grading machine conveyor belt.

E Conveying belt

Size:2100×300×1200mm

F Single-lane Electronic fruit grading machine

a. Power:1.5kw ,380v,50Hz

b. Size:7300×1900×1400mm

c. Speed:18000-21000pcs/hour

d. Electronic controlling system:Siemens color touch screen display, PLC, Weighing module, Weighing sensor

e. Grade:6 grades,8 compartments

f. Operating system:English/Chinese Interface

Ⅲ Type of control

a. Cleaning and waxing portion:stepless speed adjusting

b. Electronic fruit grading machine:frequency control

Ⅳ Type of motor

a. Cleaning portion

Reducing motor

Power:0.75kw

Voltage:380V/50Hz

Quantity:3sets

b. Electronic fruit grading machine

⑴ Loading portion

Reducing Motor

Power:0.75kw

Voltage:380V/50Hz

Quantity:1set

⑵ Main machine

Reducing Motor

Power:1.5kw

Voltage:380V/50Hz

Quantity:1set
