Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Bone Crusher: | Output 3-10mm |
|---|---|---|---|
| Bone Paste Machine: | 40-150 Mesh | Suitable For: | Animal Bone, Frozen Or Unfrozen |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |
bone crusher, animal bone crushing machine, bone paste grinding machine

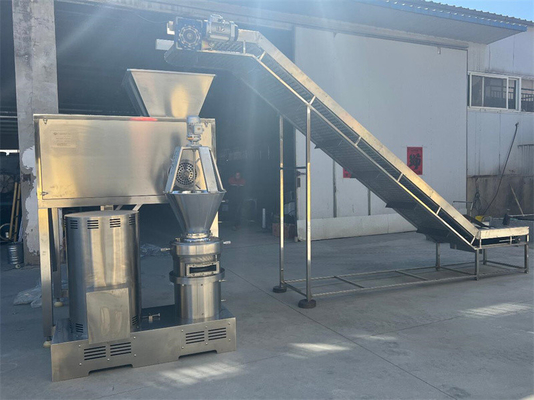

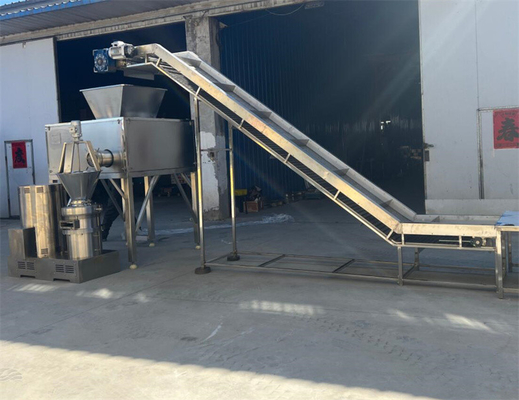

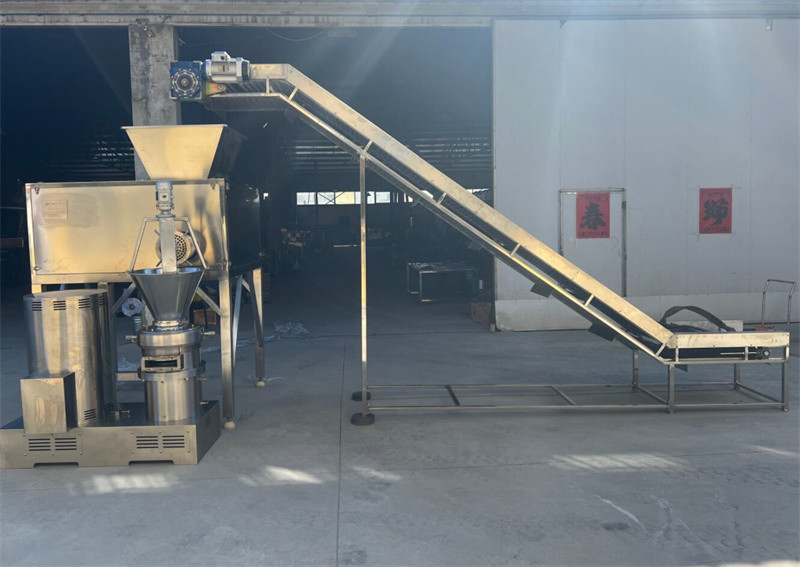

This bone processing line contains elevator, bone crushing machine ( add grinding part), bone paste machine, input bone less than 550mm,
first come out 3-10mm, next into bone paste machine, get 40-150mesh paste.
Technical parameter:
| Machine | Specification |
| Elevator |
Model: H-3.4M Belt width : 550mm Height : 3.4m Length :5m Belt : PVC Material : frame use stainless steel 304
|
| Bone crusher + grinding machine |
Model : PJS-600-2Z Power: 45kw, 380v,50hz Bone input size : ≤550mm Output bone size : 3-10mm Capacity : 2-4T/h Dimension : 1500*1500*3400mm Material : Stainless steel 304
|
| Bone paste grinding machine |
Model : JMS-240 Power : 45kw,380v, 50hz Shaft rotating: 2600r/min Output bone paste:40-150mesh Cooling method: water cooling Hopper: 42L Capacity : 1-2T/h Dimension:1330*630*1280mm Weight:900kg Material : stainless steel 304 |
