Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Elevator: | 0.75kw, 380v, 50hz |
|---|---|---|---|
| Brush Cleaning Machine: | 1.5kw, 380v,50hz | Sorting Machine: | 1.5kw, 380v,50hz |
| Shipping: | EXW,FOB,CNF,CIF | Warranty: | One Year |
Potato brush cleaning, grading processing line 4t/h
Process flow:
Potato elevator--- brush cleaning --- grading
This production line is suitable for potatoes grown on sandy land, not use water, but brushes to clean.
potato elevator
brush cleaning machine: brushes soft, no harm to potato
potato sorting machine : can grading into 4 grades, 5 grades, 6 grades, etc according to customer needs.
Technical parameter:
| Machine | Specification |
|

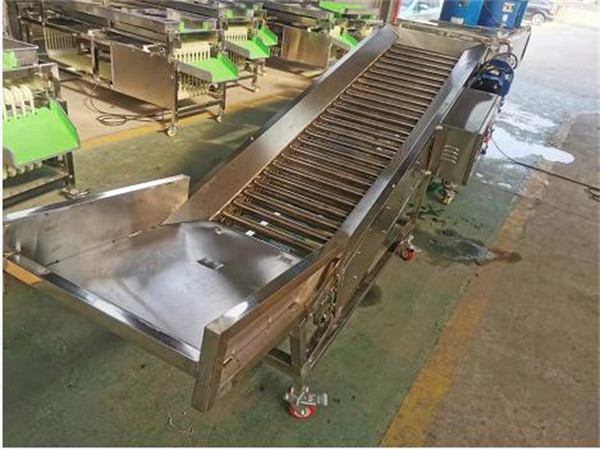

Potato elevator
|
Roller elevator Dimension : 3*1.3*1.2m Power : 0.75kw, 380v, 50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 201 ; Roller width: 800mm Purpose: Used for material conveying and upgrading to the next step
|

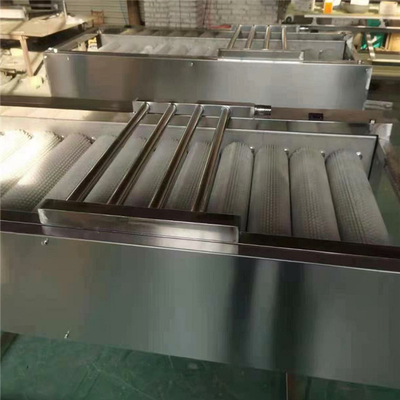

| Brush cleaning machine |
Brush cleaning machine Dimension : 3*1*1.5m Power : transmission 1.5kw, 380v,50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 201 ; Brushes: 22pcs, brush roller width 0.8 meters; Equipped with a soil conveyor below.
|
|

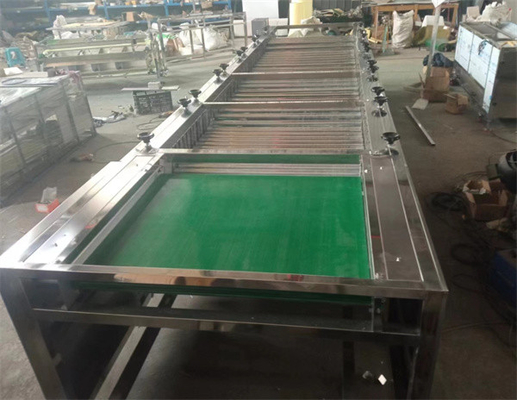

Potato grading machine
|
Potato grading machine into 4 grades Dimension:4*1.85*1.15m Power:2.2kw, 380v,50hz Material: stainless stee2.2kw, 380v,50hzl 201 ; roller effective width :980mm; Grading specifications: 40-100mm user-adjustable; Grading: 4 grades
|
